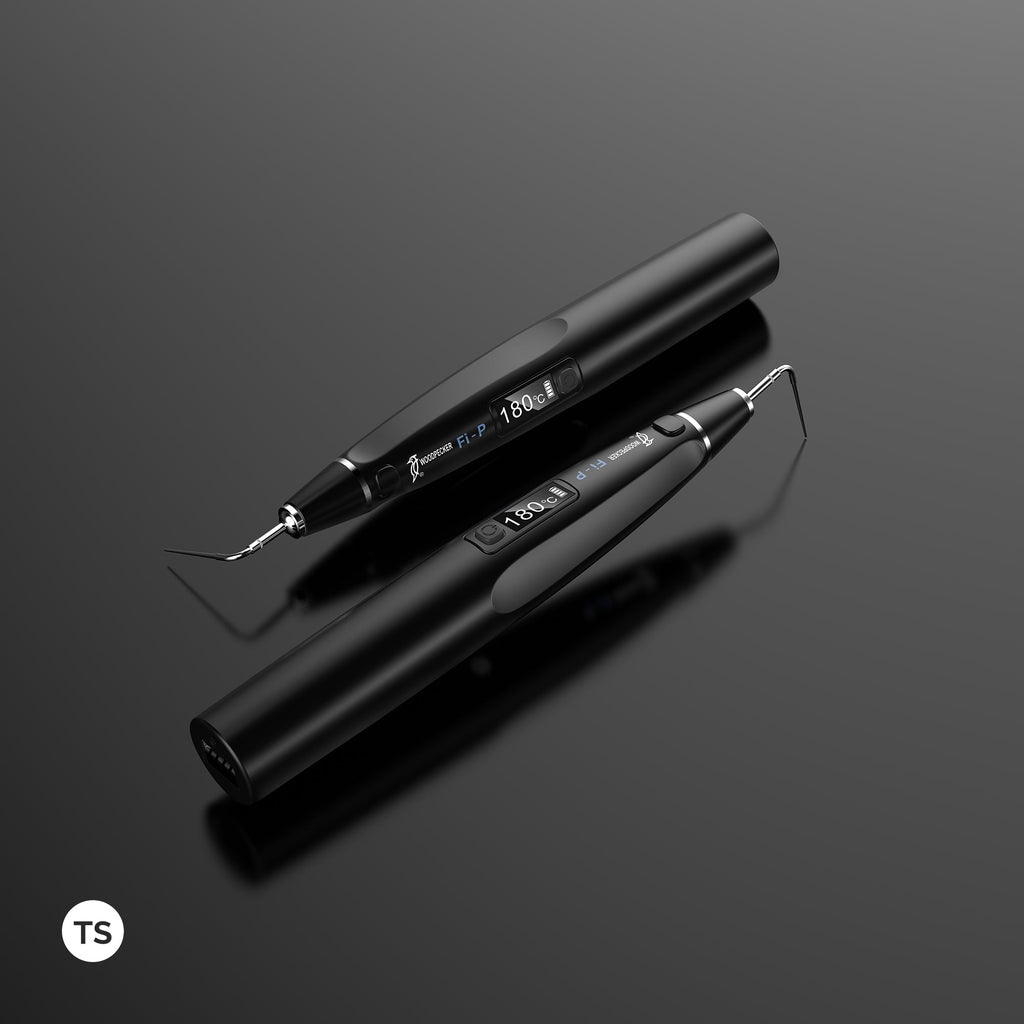

Woodpecker Down pack obturation pen for gutta percha and intra-canal heating of irrigants.

Click here to find out more about the Fi-P.

Price match guarantee

Softening function

Soften root canal filling material (gutta-percha) during the root canal filling operation.

Diffusion function

Diffuse the root canal filling material (gutta-percha) to the lateral branch root canals and the lower part of the root canal.

Cutting function

Cutting the root canal filling material (gutta-percha).

Pressing function

All root canals, including the lateral root canal, are optimally filled by heating and vertical extrusion.

Fi-P Features

• Wireless, ergonomic design.

• Ambidextrous accessible.

• Single button for ease of use.

• Quick heating within 0.2s.

• Safety automatic shut off after 10 seconds.

• Reduced waiting time.

• 0.35mm pre-bend tip.

• Improved penetrability into the narrow root canal.

• 4 hour battery life.

• High precision temperature control.

• Pre-set working temperatures for compatibility with many different GP.

• Smooth cutting of GP due to high-efficiency conversion system.

Technical Specifications

Classification: Class II (AC/DC power adaptor)

Available temperatures: 150ºC, 180ºC, 200ºC, 230ºC

Charging time: 2.5 hours (3 hours recommended for first time charging)

Battery life: 1500 x 10 seconds working time. (~4 hours)

Power input: AC100V-240V, 50/60Hz, 0.8mA

Power output: DC15V/1.6A

Battery capacity: 2000mAh

Device size: 23.8mm x 158.3mm x 23.8mm

Charging dock size: 75.5mm x 149.7mm x 62.6mm

Device weight: 80g

Charging dock weight: 195g

Power adaptor weight: 167g

Storage conditions:

Temperature: -20ºC to 50ºC

Humidity: 10% to 93%

Pressure: 70kPa to 106kPa

Usage conditions:

Temperature: -20ºC to 50ºC

Humidity: 10% to 93%

Pressure: 70kPa to 106kPa
